Name: ANSIASME B 1822 DIN6334 M16 Hex Coupling Nuts
Brand: TOBO
Price: 1 USD

ANSI/ASME B 18.2.2 DIN6334 M16 Hex Coupling Nuts

Brand Name : TOBO

Model Number : Bolts

Certification : CE/SGS/ISO

Place of Origin : China

MOQ : 1pcs

Payment Terms : T/T

Supply Ability : Max 150 tons/month

Delivery Time : 25 workdays

Packaging Details : Neutral packaging or customized packaging

Size : Custom Size,M3-M48,m3 m4 m5 m6 m8 m10 m12,M1.6/2/2.5/3/3.5/4/5/6/8/10/12/14/16/18/20/22/24/2

Material : Stainless Steel,carbon steel,Brass,Iron,copper

Color : Black,White,Accoeding Client Requirement,etc,Blue

Surface treatment : Zinc,plain or according to customer,Yellow Zinc Plain Hot galvanized,Plain,passivate

Product name : Hex Head DIN931,carbon steel DIN 1587 Acorn Nut,titanium nut,Hex Drive Steel Flat Head Wood Insert Nut,DIN985 carbon steel nylon ring lock nut insert nim m3-m14

Grade : 4.8/ 8.8/ 10.9/ 12.9 Ect,304,8

Application : Structural Steel; Metal Buliding

Contact Now

Quick Details

Finish:: passivated

Measurement system:: Metric

Application:: Heavy Industry

Place of Origin:: China

Brand Name:: TOBO

Model Number:: M6-M36

Standard:: DIN

Material:: stainless steel

Surface treatment:: plain

Size:: M5-M36

Grade:: A2-70,A4-80, 4.8-12.9

Packing:: 25KG/CARTON, 36-42CARTONS/PALLET

Certificate:: ROHS, SGS

Payment:: T/T

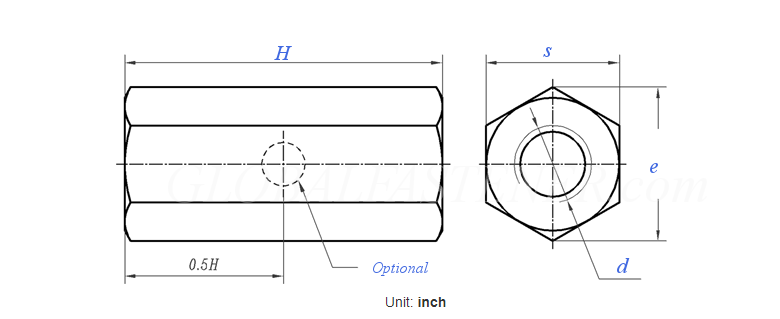

ANSI/ASME B 18.2.2 DIN6334 M16 Hex Coupling Nuts

Screw Thread
d

d
PP	UNC
	UNF
	8-UN
s	min
	max=nominal size
e	min
	max
H	min
	max

0.1380	0.1640	0.1900	0.2500	0.3125	0.3750	0.4375	0.5000	0.5625	0.6250	0.7500	0.8750
32	32	24	20	18	16	14	13	12	11	10	9
40	36	32	28	24	24	20	20	18	18	16	14
-	-	-	-	-	-	-	-	-	-	-	-
0.302	0.302	0.302	0.428	0.489	0.551	0.607	0.663	0.782	0.782	0.963	1.212
0.312	0.312	0.312	0.438	0.500	0.562	0.625	0.688	0.813	0.813	1.000	1.250
0.344	0.344	0.344	0.488	0.557	0.628	0.692	0.756	0.891	0.891	1.097	1.382
0.361	0.361	0.361	0.505	0.577	0.650	0.722	0.794	0.939	0.939	1.155	1.443
0.470	0.595	0.711	1.690	1.690	1.690	1.690	1.690	2.067	2.067	2.190	2.440
0.510	0.645	0.760	1.760	1.760	1.760	1.760	1.760	2.135	2.135	2.260	2.510

Screw Thread
d

d
PP	UNC
	UNF
	8-UN
s	min
	max=nominal size
e	min
	max
H	min
	max

1.0000	1.1250	1.2500	1.5000	1.6250	1.7500	1.8750	2.0000	2.2500	2.5000	2.7500	3.0000
8	7	7	6	-	5	-	4-1/2	4-1/2	4	4	4
12	12	12	12	-	-	-	-	-	-	-	-
-	8	8	8	8	8	8	8	8	8	8	8
1.325	1.450	1.575	1.950	2.481	2.662	2.844	3.025	3.388	3.750	4.112	4.475
1.375	1.500	1.625	2.000	2.562	2.750	2.938	3.125	3.500	3.875	4.250	4.625
1.511	1.653	1.825	2.275	2.828	3.035	3.242	3.448	3.862	4.275	4.688	5.101
1.588	1.732	1.876	2.309	2.959	3.175	3.392	3.608	4.041	4.474	4.907	5.340
2.690	2.940	2.940	3.440	4.830	5.210	5.580	5.950	6.700	7.440	8.190	8.940
2.760	3.010	3.010	3.510	4.910	5.290	5.670	6.040	6.800	7.550	8.310	9.060

Screw Thread
d

d
PP	UNC
	UNF
	8-UN
s	min
	max=nominal size
e	min
	max
H	min
	max

3.2500	3.5000	3.7500	4.0000	4.2500	4.5000	4.7500	5.0000	5.2500	5.5000	5.7500	6.0000
4	4	4	4	-	-	-	-	-	-	-	-
-	-	-	-	-	-	-	-	-	-	-	-
8	8	8	8	8	8	8	8	8	8	8	8
4.838	5.200	5.562	5.925	6.288	6.650	7.012	7.375	7.738	8.100	8.462	8.825
5.000	5.375	5.750	6.125	6.500	6.875	7.250	7.625	8.000	8.375	8.750	9.125
5.515	5.928	6.340	6.754	7.168	7.581	7.994	8.408	8.821	9.234	9.647	10.060
5.773	6.206	6.639	7.072	7.506	7.939	8.372	8.805	9.238	9.671	10.104	10.537
9.680	10.430	11.170	11.920	12.670	13.420	14.160	14.910	15.650	16.400	17.150	17.890
9.810	10.570	11.320	12.080	12.830	13.580	14.340	15.090	15.850	16.600	17.350	18.110

Packing & Shipping

Package details:

1) Sample order, 20/25kg per carton with our logo or neutral package;

2) For Large orders, we can custom packaging;

3) Normal Packing: 1000/500/250pcs per small box. then into cartons and pallet;

4) According to customers' requirements.

FAQ

1.How do you let me trust you?
We are a Golden supplier in Alibaba who do business for more than 5 years. You can make an order by Alibaba to us directly.

2.How about your price?
High-quality products with a reasonable price suitable for your market.

3.How do you control your quality?
We request a QC inspection for each batch of goods. And we can provide you inspection report and mill certificate if you want..

4.Could you provide free samples?
For new customers, We can provide free samples for standard fasteners. But the clients will pay the express charges. For regular customers, We will send you free samples and pay express charges by ourselves.

5.How about your delivery time?
Generally speaking, All the goods have stock with little quantity, we can delivery them with one week. If the quantity is 1-2container, we can give you with 30-45days.

6.What is your packing?
Our packing is 20-25kg for one carton,36 or 48pcs cartons for one pallet. One pallet is about 900-960kg, We also can make the customer's logo on the cartons. Or we customized cartons according to customers' requirement, If you need small box packing, we can do according to your requirement.

7.What is your payment term?
We can accept T/T,LC for general order. For new customer, we request 20%-50% T/T in advance, and balance payment should against B/L copy. For regular customer, we can provide delay payment after B/L date about 30-90 days
.
