DIN 787 Bolts And Screws For T-Slots Carbon Steel Black Oxide T Groove Bolt

Product Categories
TOBO GROUP LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

DIN 787 Bolts And Screws For T-Slots Carbon Steel Black Oxide T Groove Bolt

Brand Name : TOBO

Model Number : Bolts

Certification : CE/SGS/ISO

Place of Origin : China

MOQ : 1pcs

Payment Terms : T/T

Supply Ability : Max 150 tons/month

Delivery Time : 25 Working days

Packaging Details : Neutral packaging or customized packaging

Product name : DIN 787 Bolts and Screws for T-slots Carbon steel black oxide T-groove bolt

Material : Carbon Steel

Standard : DIN,ISO,ANSI

Color : Black,White,Accoeding Client Requirement,etc,Blue

Head type : Flat head,Hexagon head,Pan head

Surface treatment : Zinc,plain or according to customer,Yellow Zinc Plain Hot galvanized,Plain,passivate

Size : Custom Size,M12-M48,

Type : stainless steel flange nut

Application : Heavy Industry

Packing : catron box + kraft box

Contact Now

DIN 787 Bolts and Screws for T-slots Carbon steel black oxide T-groove bolt

Products Specification
Quick Details
Finish:
black oxide
Material:
Carbon Steel
Place of Origin:
China
Brand Name:
TOBO
Model Number:
M12-M48
Standard:
DIN, DIN GB
Product Name:
Bolts and Screws for T-slots
Grade:
8.8/10.9/12.9
Performance Level:
12.9
Size:
(as your required)
Head type:
T-type
tolerance:
As per customer's requirement
surface treatment:
Black Oxide

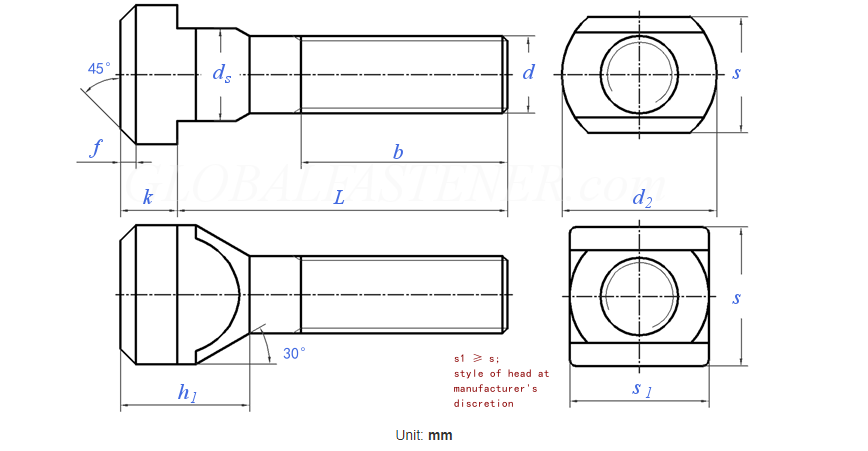

DIN 787 Bolts And Screws For T-Slots Carbon Steel Black Oxide T Groove Bolt

DIN 787 Bolts And Screws For T-Slots Carbon Steel Black Oxide T Groove Bolt

Thread Size
d
M12
|14×50		 M12
|14×80		 M12
|14×125		 M12
|14×200		 M16
|18×63		 M16
|18×100		 M16
|18×160		 M16
|18×250		 M20
|22×80		 M20
|22×315		 M20
|22×200		 M20
|22×125		 M24
|28×100		 M24
|28×250		 M24
|28×160
ds Nominal Size
max
min
L
b
d2
s max=nominal size
min
f
h1
k max=nominal size
min
per 1000 units≈kg
T-slots DIN 650
14 14 14 14 18 18 18 18 22 22 22 22 28 28 28
13.7 13.7 13.7 13.7 17.7 17.7 17.7 17.7 21.7 21.7 21.7 21.7 27.7 27.7 27.7
13.4 13.4 13.4 13.4 17.4 17.4 17.4 17.4 21.4 21.4 21.4 21.4 27.4 27.4 27.4
50 80 125 200 63 100 160 250 80 315 200 125 100 250 160
35 55 75 120 45 63 100 150 55 190 125 85 70 150 110
28 28 28 28 36 36 36 36 45 45 45 45 56 56 56
22 22 22 22 28 28 28 28 35 35 35 35 44 44 44
21.5 21.5 21.5 21.5 27.5 27.5 27.5 27.5 34.5 34.5 34.5 34.5 43 43 43
2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 4 4 4
20 20 20 20 24 24 24 24 32 32 32 32 41 41 41
8 8 8 8 10 10 10 10 14 14 14 14 18 18 18
7.5 7.5 7.5 7.5 9.5 9.5 9.5 9.5 13.5 13.5 13.5 13.5 17 17 17
75 100 140 200 135 220 300 430 340 810 610 440 660 1130 850
14 14 14 14 18 18 18 18 22 22 22 22 28 28 28
Thread Size
d
M24
|28×315		 M30
|36×125		 M30
|36×315		 M30
|36×200		 M30
|36×500		 M36
|42×160		 M36
|42×400		 M36
|42×250		 M42
|48×160		 M42
|48×250		 M42
|48×400		 M48
|54×200		 M48
|54×315		 M48
|54×500
ds Nominal Size
max
min
L
b
d2
s max=nominal size
min
f
h1
k max=nominal size
min
per 1000 units≈kg
T-slots DIN 650
28 36 36 36 36 42 42 42 48 48 48 54 54 54
27.7 35.6 35.6 35.6 35.6 41.6 41.6 41.6 47.6 47.6 47.6 53.6 53.6 53.6
27.4 35.3 35.3 35.3 35.3 41.3 41.3 41.3 47.3 47.3 47.3 53.2 53.2 53.2
315 125 315 200 500 160 400 250 160 250 400 200 315 500
240 80 200 135 300 100 250 175 100 175 250 130 220 300
56 70 70 70 70 82 82 82 95 95 95 110 110 110
44 54 54 54 54 65 65 65 75 75 75 85 85 85
43 53 53 53 53 64 64 64 74 74 74 84 84 84
4 6 6 6 6 6 6 6 6 6 6 6 6 6
41 50 50 50 50 60 60 60 70 70 70 80 80 80
18 22 22 22 22 26 26 26 30 30 30 34 34 34
17 21 21 21 21 25 25 25 29 29 29 33 33 33
1200 1330 2270 2000 3300 2400 4100 3000 3400 4300 5800 4000 5300 9200
28 36 36 36 36 42 42 42 48 48 48 54 54 54

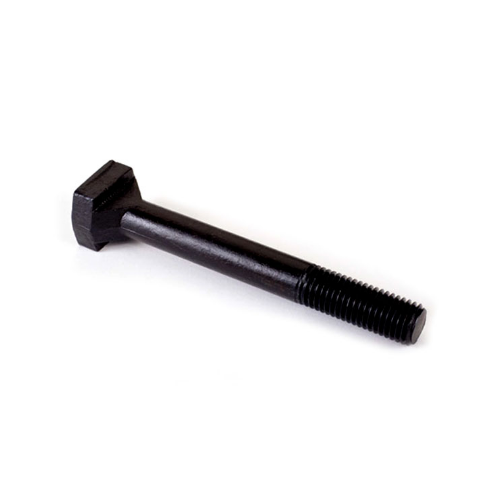

DIN 787 Bolts And Screws For T-Slots Carbon Steel Black Oxide T Groove Bolt

Packing & Shipping
Package details:
1) Sample order, 20/25kg per carton with our logo or neutral package;
2) For Large orders, we can custom packaging;
3) Normal Packing: 1000/500/250pcs per small box. then into cartons and pallet;
4) According to customers' requirements.
DIN 787 Bolts And Screws For T-Slots Carbon Steel Black Oxide T Groove Bolt
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance ,balance before shippment.
