Hex Nuts DIN934 Hexagon Bolt Carbon Steel Stainless Steel SS304 316

TOBO GROUP LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Hex Nuts DIN934 Hexagon Bolt Carbon Steel Stainless Steel SS304 316

  • 1
  • 2

Brand Name : TOBO

Model Number : Nuts

Certification : CE/SGS/ISO

Place of Origin : China

MOQ : 1pcs

Payment Terms : T/T

Supply Ability : 100000 Piece Per Month

Delivery Time : 25 Working days

Packaging Details : Neutral packaging or customized packaging

Material : Carbon steel, Stainless steel

Standard : DIN, ASME B18.2.1 ISO4014, DIN934, DIN6334

Color : Black,White,Accoeding Client Requirement,etc,Blue

Head type : Flat head,Hexagon head,Pan head

Surface treatment : plain, zinc plated, hot dip galvanized

Size : Custom Size,

Type : stainless steel flange nut

Application : Heavy Industry

Packing : catron box + kraft box

Contact Now

Hex Nuts DIN934 Hexagon Bolt Carbon Steel Stainless Steel SS304 316

Products Specification
Quick Details
Finish:
ZINC PLATED, Black Oxide, galvanized, Plain
Measurement system:
Metric, Imperial (Inch)
Application:
Heavy Industry, Mining, Water Treatment, Healthcare, Retail Industry, Food & Beverage, General Industry, Oil & Gas, Automotive Industry
Place of Origin:
China
Brand Name:
TOBO
Model Number:
4# to 3'' & M1.6 to M64
Standard:
DIN, ASME B18.2.1 ISO4014, DIN934, DIN6334 ,UNI, JIS,A194 GR2H/2HM/B8/
Item:
hexagonal hex nuts
size:
4# to 3'' & M1.6 to M64
Grade:
A2 A4 or grade 2 6 8 10
Chamfer:
Single chamfered, double chamfered,
Thread:
Metric SAE, UNC, UNF
Material:
carbon steel, alloy steel, stainless steel, brass,
Surface:
plain, zinc plated, hot dip galvanized

Item
hexagonal hex nuts
size
4# to 3'' & M1.6 to M64
Standard
ASME B18.2.1 ISO4014, DIN934, DIN6334 ,UNI, JIS,A194 GR2H/2HM/B8/B8M/4/7 A563GRDH
Thread
Metric SAE, UNC, UNF
Grade
A2 A4 or grade 2 6 8 10
Material
carbon steel, alloy steel, stainless steel, brass, nylon, aluminum
Surface
plain, zinc plated, hot dip galvanized ,black oxide,dacromet, geomet,xylan

Hex Nuts DIN934 Hexagon Bolt Carbon Steel Stainless Steel SS304 316

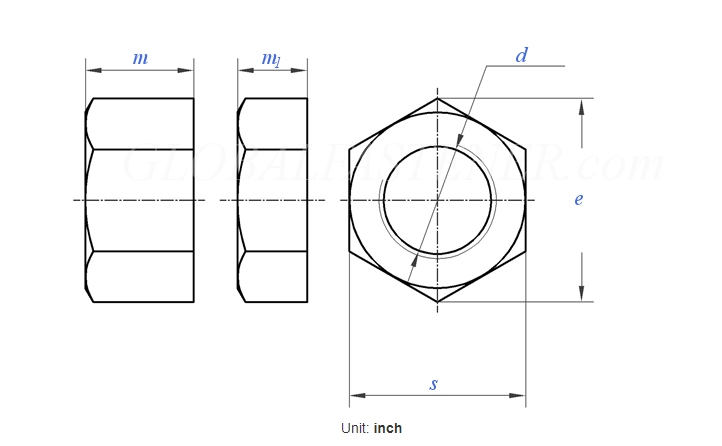

Screw Thread
d
1-1/8 1-1/4 1-3/8 1-1/2 1-3/4 2 2-1/4 2-1/2 2-3/4 3 3-1/4 3-1/2 3-3/4 4
d
PP UNC
UNF
8-UN
s min
max
e min
max
m min
max
m1 min
max
1.1250 1.2500 1.3750 1.5000 1.7500 2.0000 2.2500 2.5000 2.7500 3.0000 3.2500 3.5000 3.7500 4.0000
7 7 6 6 5 4-1/2 4-1/2 4 4 4 4 4 4 4
12 12 12 12 - - - - - - - - - -
8 8 8 8 8 8 8 8 8 8 8 8 8 8
1.756 1.938 2.119 2.300 2.662 3.025 3.388 3.750 4.112 4.475 4.838 5.200 5.562 5.925
1.812 2.000 2.188 2.375 2.750 3.125 3.500 3.875 4.250 4.625 5.000 5.375 5.750 6.125
2.002 2.209 2.416 2.622 3.035 3.449 3.862 4.275 4.688 5.102 5.515 5.928 6.341 6.755
2.093 2.309 2.526 2.742 3.175 3.608 4.041 4.474 4.907 5.340 5.774 6.207 6.640 7.073
1.079 1.187 1.310 1.433 1.679 1.925 2.155 2.401 2.647 2.893 3.124 3.370 3.616 3.862
1.155 1.282 1.409 1.536 1.790 2.044 2.298 2.552 2.806 3.060 3.314 3.568 3.822 4.076
0.579 0.687 0.747 0.808 0.929 1.050 1.155 1.401 1.522 1.643 1.748 1.870 1.990 2.112
0.655 0.782 0.846 0.911 1.040 1.169 1.298 1.552 1.681 1.810 1.939 2.068 2.197 2.326

Packing & Shipping
Package details:
1) Sample order, 20/25kg per carton with our logo or neutral package;
2) For Large orders, we can custom packaging;
3) Normal Packing: 1000/500/250pcs per small box. then into cartons and pallet;
4) According to customers' requirements.
Hex Nuts DIN934 Hexagon Bolt Carbon Steel Stainless Steel SS304 316
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance ,balance before shippment.
